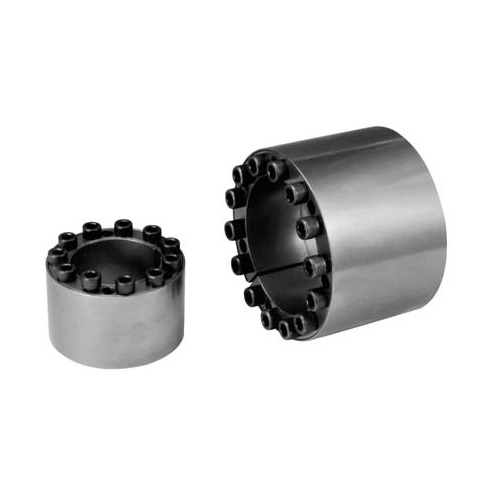

D(Z18) Type CAPT-LOCKS

Range of product: DIN:(D(Z18)) Metric size product (Apply to DIN market) D(Z18) Type CAPT-LOCKS

Product Details

Parameters Introduction：

D NSPT-LOCKS is a heavier type than type B with a connecting capacity of 2 to 3 times over type B. It has

the same dimensions as type B NSPT-LOCKS but is more economical than type B since it has more capacity.

The characteristics of D NSPT-LOCKS are the ease of self-installation and good concentricity. The guiding

taper surface does not require special machining, and the central bore of the hub is in a straight line with

the surface of the shaft. It reduces the production time and costs.

D NSPT-LOCKS have high installation precision and connecting capacity. The connecting function is provided

by the friction and pressures between the lock, shaft and hub.There is no need for machining keys since it

connects without slot ot key. This type of NSPT-LOCKS is commonly used in transmission with heavy duty

connections and/or large torques.

Product range：

Standards

Series Type

SizeRange

DIN

D(Z18)

CL45x75D至CL340x425D

ANSI Catalog:ANSI D(Z18) Type CAPT-LOCKS.pdf

DIN Catalog:DIN D(Z18) Type CAPT-LOCKS.pdf
